FI1 Body Size
Click Image to Zoom

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW

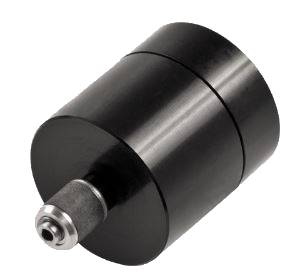

FI1 Body Size

Internal pneumatic connector and main seal set for sealing

Part #: FI111 Manufacturer: FasTest
Price/UOM: $496.80
Availability: Out of Stock

Please Contact Us for Lead Time

UOM: EACH

FasTest Internal "FI" connectors provide fast, leak-tight connections for pressure and vacuum testing, fluid filling and flushing applications from vacuum to 120 psi. With the addition of a new stroke limiter feature and improved retainer clip design, the FI Series delivers increased reliability and safety. The connectors are activated by compressed regulated air acting on a piston which expands an elastomeric seal to form a leak-tight connection. Testing, filling or flushing of the piece is accomplished by introducing air, liquid or gas media through the connector. Automated Internal Sealing to 120 psi Pneumatic Operation Seals Inside Tubes and Pipes Designed for Production Testing Applications Pick and Place Parts Handling Stroke Limiter Regulates Seal Expansion

WARNING: The FI connector must be SECURED to the test piece by a mechanical device before proceeding.

Email this page to a friend
Product Attributes
Connection Type: Internal Tubes/Bores
Connects To: 0.394" to 0.472"
Termination: 1/8" NPT (Female)
UOM: EACH
Connection Method: Automated Pneumatic
Product Family: FI Series
Pressure Rating: 120 (8.2)
Part Number Tags
FI111
