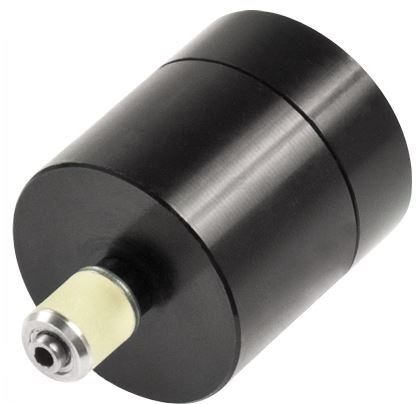

Click Image to Zoom
FI222UR FI2-2 Body Size - UR
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW

FI2-2 Body Size - UR

Internal pneumatic connector and main seal set for sealing

Part #: FI222UR Manufacturer: FasTest
Price: $531.60
UOM: EACH
Availability: Contact Us for Lead Time
*INVENTORY MAY VARY BY LOCATION
Description:
FasTest Internal "FI" connectors provide fast, leak-tight connections for pressure and vacuum testing, fluid filling and flushing applications from vacuum to 120 psi. With the addition of a new stroke limiter feature and improved retainer clip design, the FI Series delivers increased reliability and safety. The connectors are activated by compressed regulated air acting on a piston which expands an elastomeric seal to form a leak-tight connection. Testing, filling or flushing of the piece is accomplished by introducing air, liquid or gas media through the connector. Automated Internal Sealing to 120 psi Pneumatic Operation Seals Inside Tubes and Pipes Designed for Production Testing Applications Pick and Place Parts Handling Stroke Limiter Regulates Seal Expansion WARNING: The FI connector must be SECURED to the test piece by a mechanical device before proceeding.

Email this page to a friend


Product Attributes


Connection Type: Internal Tubes/Bores
Connects To: 0.709" to 0.787"
Termination: 1/8" NPT (Female)
UOM: EACH
Connection Method: Automated Pneumatic
Product Family: FI Series
Pressure Rating: 120 (8.2)


Part Number Tags: FI222UR
