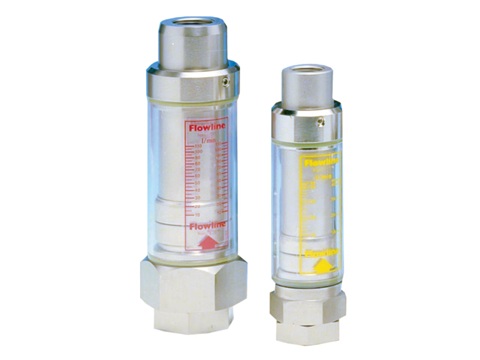

High Pressure Mechanical Flowmeter - Flowline

The Parker Flowline Series comprises a wide range of inline mechanical flow measurement devices that are designed for high-flow, high-pressure applications, including off-road mobile pump performance / industrial oil supply lines. The flowmeters are non-intrusive (i.e. do not obstruct flow) and are available with either a brass or stainless steel housing, making them suitable for use in harsh environments, where high-pressure and corrosive chemicals can damage conventional measurement devices. Easiflow flowmeters are highly simplistic and versatile devices that utilize a variable-orfice aperature (i.e. variable area principle). The meters can work in any plane and feature an internal piston, which moves as flow rate increases, opening a larger area to pass flowing air, water or hydraulic oil. The design provides users with a direct visual indication of flow rate and serves as a highly reliable method of measuring flow in high-pressure fluid systems. As an option, the meters can be equipped with a magnetically-operated reed switch that’s capable of controlling valves and/or pumps, or activating alarm signals in the event that flow exceeds or drops below a pre-determined level set by the user. Multiple Flowline meters are available to meet the unique fluid flow requirements of customers’ systems. Flow rates range from 0.2 - 360 L/min (.05 - 95 GPM), with a maximum allowable working pressure of 350 bar (5000 psi). All Flowline devices are calibrated for both oil and water and feature accuracy and repeatability of +-5% full scale defection (FSD) and +-1% FSD, respectively. The meters are relatively insensitive to viscosity changes. Further information regarding compatibility with corrosive fluids can be provided by a Parker Filtration representative. Markets: Oil and Gas / Pharmaceutical / Industrial / Process Benefits: •Rugged construction (brass or stainless steel) ensures reliable operation in harsh operating environments. •Clear outer glass body shroud construction allows users to quickly and easily determine flow rate in a system and/or line. •Helps protect critical equipment from damage by ensuring that hydraulic fluid levels do not go above or below specified levels. Features: •Capable of flows ranging from 0.2 - 360 L/min (.05 - 95 GPM) •Operating temperature range (brass): -20 to +90°C (-4 to +194°F) •Operating temperature range (316 stainless steel ): -20 to +105°C (-4 to +221°F) •Maximum allowable working pressure: 350 bar (5000 psi) •Optional mechanically-operated reed switch •Viscosity range: 10 to 200 cSt (oil) •Calibrated for both oil and water For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor
