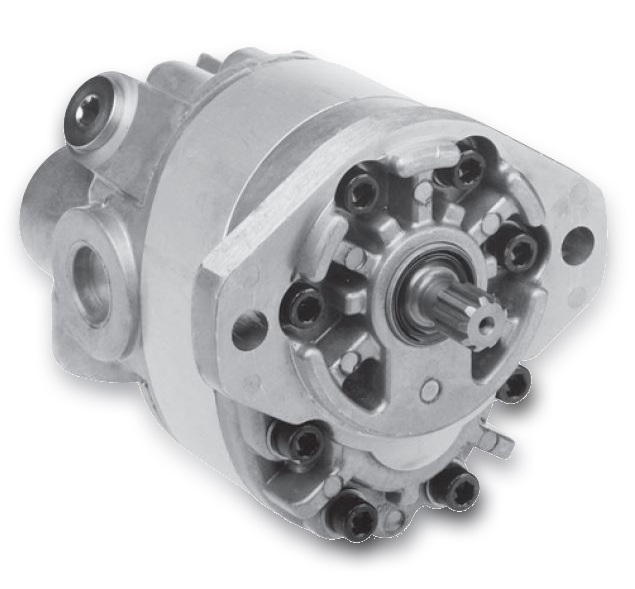

Fixed Displacement Gear Pump - Series HD
Aluminum Pump
| Part #: HD39AA2A14A | Manufacturer: Parker - Gear Pump Division |
|
Price/UOM: $1,236.75
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Wilson Company offers the Aluminum Pump HD Series fixed displacement gear pump. Which offers high performance and high power density due to its aluminum construction.
Email this page to a friend
Product Attributes
| Displacement: | .942 Displacement IN3 (15.44 CC/REV.) |
| Shaft: | .750 D. Keyed 1.56 Ext. |
| Rotation: | Clockwise |
| Front Cover: | SAE A - Pilot |
| UOM: | EACH |
| Pump Series: | HD |
| Port Group 1st Stage Inlet: | 1-5/16" - 12 SAE Straight Thread 1" Tube |
| Port Group 1st Stage Outlet: | 7/8" - 14 SAE Straight Thread 5/8" Tube |
| 2nd Stage Series & Size: | .329 Displacement IN3 (5.38 CC/REV.) |
| Port Group 2nd Stage Inlet: | 7/8" - 14 UNF-2B SAE Straight Thread |
Part Number Tags
HD39AA2A14A
