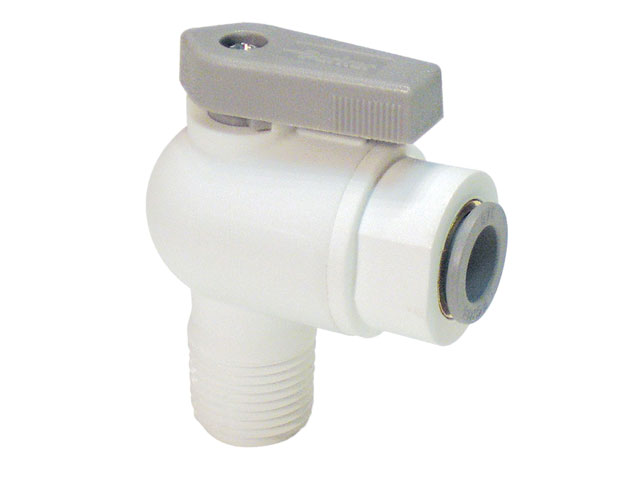

LIQUIfit Ball Valve - VME
Male Elbow 90° Polypropylene Ball Valve
| Part #: LFPP4VME6 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $9.05
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
LIQUIfit Polypropylene Male Elbow 90° Ball Valve. This range of valves offers an innovative solution in the treatment of water and the handling of beverages while protecting health.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 1/4 Inch |
| Outer Diameter 2: | 3/8 Inch |
| Material: | Polypropylene |
| UOM: | EACH |
| Thread 1: | 3/8 NPT |
| Configuration Type: | Tube to Male |
| Trade Name: | LIQUIfit |
| Series: | LIQUIfit Ball Valve |
| Pressure Range: | Up to 150 PSI |
| Configuration Sub-Type: | Male Elbow 90° |
| Flow Diameter: | 0.19 |
| Valve Type: | Ball Valve |
| Outer Diameter 1 Inch/mm: | Inch |
| Outer Diameter 2 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 1 Type: | NPT |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | 35Ëš to 200ËšF |
| Material - Seal: | EPDM |
| Application: | Water, Beverages, Food, CO2 |
| Specific Application: | Meets FDA and NSF-51 requirements |
Part Number Tags
LFPP4VME6
