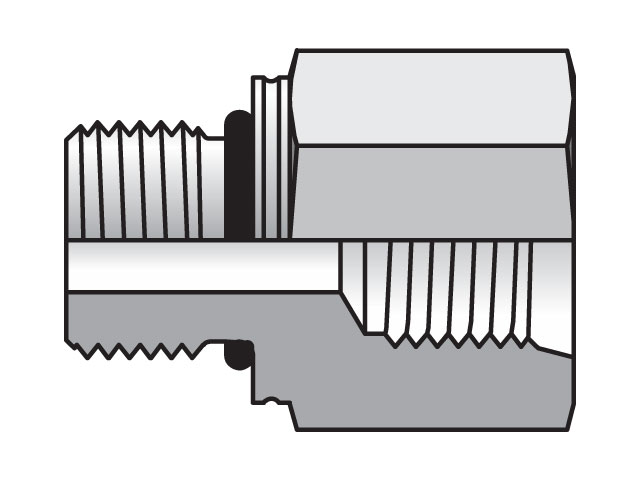

ORFS Reducer, Expander, Conversion F87OHG87
Reducer / Expander ISO 6149 / ISO 6149
| Part #: M12M16F87OHG87MS | Manufacturer: Parker - Tube Fittings Division |
|
Price/UOM: $31.78
|
Availability: In Stock |
| UOM: EACH |
Seal-Lok O-Ring Face Seal Tube Fittings have proven to be very effective in eliminating leakage at the higher pressures found in today’s hydraulic systems. The Seal-Lok fitting is an O-ring face seal type fitting that consists of a nut, a body, an O-ring and a sleeve. Seal-Lok fittings are suitable for a wide range of tube wall thicknesses and are readily adaptable to pipe, inch or metric tubing and hose.
Email this page to a friend
Product Attributes
| End 1: | M12x1.5 Metric |
| End 2: | M16x1.5 Metric |
| Material: | Steel |
| UOM: | EACH |
| Series: | ORFS |
| Tube Fitting/Adapter Type: | ORFS, Seal-Lok O-Ring Face Seal |
| Configuration Type: | Reducer, Expander, Conversion |
| Configuration Sub-Type: | Reducer / Expander ISO 6149 / ISO 6149 |
| Inch/Metric: | Metric |
| Parker Division: | Tube Fitting |
| End 2 Type: | Metric |
| End 1 Type: | Metric |
| Parker Group: | Fluid Connector |
Part Number Tags
M12M16F87OHG87MS
