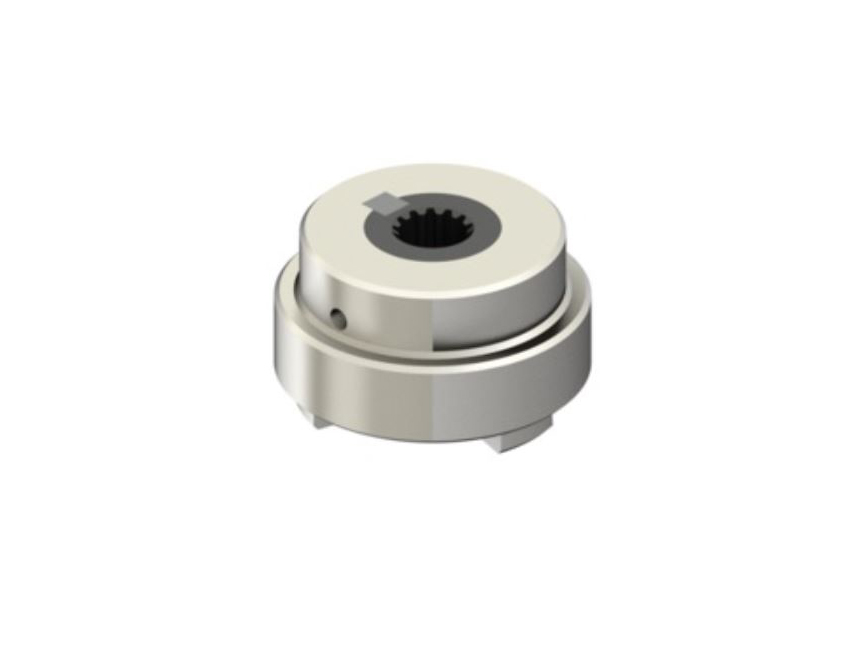

Magnaloy Steel Bushed Coupling - Model M400
400 Model Steel Bushed Coupling (Coupling Insert Not Included)
| Part #: M400B1316 | Manufacturer: Magnaloy Coupling Co. |
|
Price/UOM: $153.00
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Coupling Insert is not included.
400 Series Magnaloy steel bushed coupling combines all the design and lightweight features of the Magnaloy Coupling with the added spline tooth strength and wear resistance of steel. Under normal conditions the standard “Splined Bore” coupling will perform satisfactorily and the addition of the “Clamp Feature” compensates for various fit conditions. When heavy cyclic loads, reverse loading and high torque loads exist in combination with fit variations, spline tooth failures and fretting can be corrected by utilizing Magnaloy’s steel bushed coupling.
This item: Magnaloy Model M400 Coupling Insert bought together with 400 Series Magnaloy steel bushed coupling.
| Spline Size: | 16/32 inch |
| No. Of Teeth: | 13 Tooth |
| Material: | Magnesium Titanium |
| UOM: | EACH |
| Coupling Series: | Model 400 |
| Length Through Bore: | 1.52 inch |
| Outside Diameter: | 3.98 inch |
| Bushing Diameter: | 1.500 inch |
| Basic Insert Number: | M470 |
