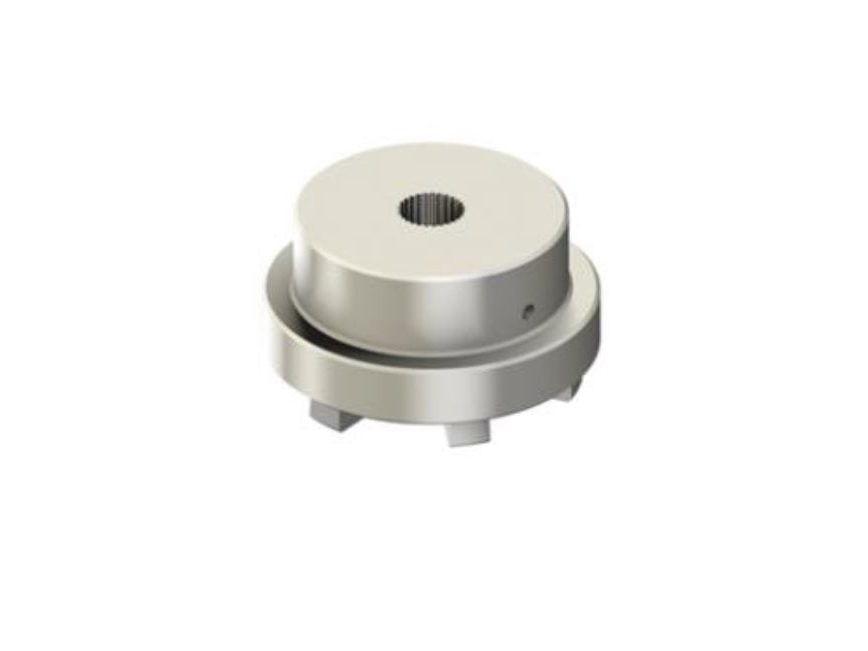

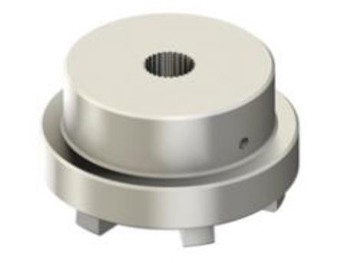

Magnaloy Spline Coupling - Model M600

600 Model Spline Coupling (Coupling Insert Not Included)

Part #: M600A1308 Manufacturer: Magnaloy Coupling Co.
Price/UOM: $142.20
Availability: In Stock
UOM: EACH

Coupling Insert is not included.

600 Series Magnaloy spline coupling combines all the design and lightweight features of the Magnaloy Coupling with the added spline tooth strength and wear resistance of steel. Under normal conditions the standard “Splined Bore” coupling will perform satisfactorily and the addition of the “Clamp Feature” compensates for various fit conditions. When heavy cyclic loads, reverse loading and high torque loads exist in combination with fit variations, spline tooth failures and fretting can be corrected by utilizing Magnaloy’s steel bushed coupling.



This item: Magnaloy Model M600 Coupling Insert bought together with 600 Series Magnaloy spline coupling.



Email this page to a friend
Product Attributes
Spline Size: 8/16 inch
No. Of Teeth: 13 Tooth
Material: Magnesium Titanium
UOM: EACH
Coupling Series: Model 600
Length Through Bore: 2.31 inch
Outside Diameter: 5.975 inch
Basic Insert Number: M670
