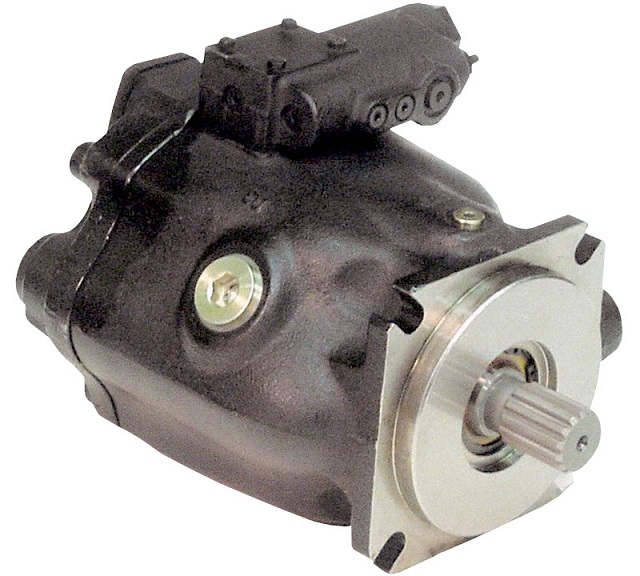

P1060PS01SLM5BC00S1000000 Piston Pump P1 Series - Mobile
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW

Piston Pump P1 Series - Mobile

Mobile

Part #: P1060PS01SLM5BC00S1000000 Manufacturer: Parker
Price: $3,143.15
UOM: EACH
Availability: Contact Us for Lead Time
*INVENTORY MAY VARY BY LOCATION
Description:
Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.
Email this page to a friend


Product Attributes


Displacement: 60cc/rev (3.66 in3/rev)
Speed range: 600 - 1800 RPM
Pressure Range: up to 4060 psi
UOM: EACH
Series: P1
P: Open Circuit
Mounting & Ports: SAE A pilot SAE Threaded Work Ports with SAE Aux Ports
Shaft Options: Splined shaft - SAE A 11T
S: Single Shaft Seal
Shaft Rotation: Counterclockwise
Configuration: Mobile
5: Fluorocarbon Seal Material
B: Design Letter
Control Options: Pressure limiter 1160.30 - 4061.05 PSI (80 - 280 bar)
0: Additional Control Options
Port Orientation: Side ported
Adjustable Displacement Stops: Adjustable maximum displacement stop
Thru-Drive Mounting Pad/Coupling: No Thru-Drive
Paint: No Paint
Special Features: No Special Features
Port Type: Flange Ports


Part Number Tag: P1060PS01SLM5BC00S1000000
