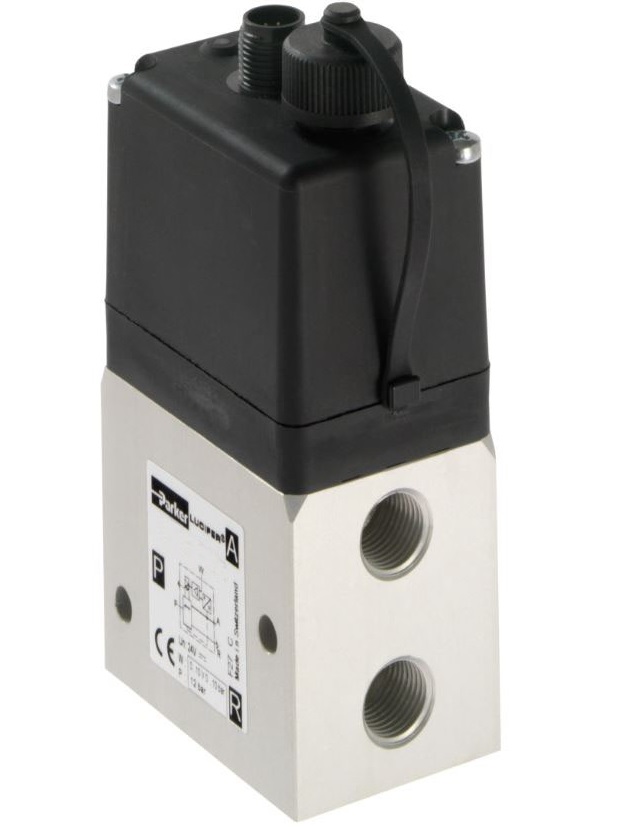

Parker EPP4
EPP4 Electro Pneumatic Pressure regulator
designates a set of proportional pressure regulators with integrated electronic system. The range is wide, from 1/4" to 2" ports, 0 to 20 bar regulated pressure and includes ATEX certified versions.
| Part #: P4CG9101C010 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $4,182.58
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
EPP4 electro pneumatic pressure regulator
range with integrated electronic system provides highest accuracy thanks to a high precision closed loop signal. The regulator is also designed to achieve the best reliability thanks to a piston concept.
Features/benefits:
-All parameters fully adjustable through the PC software Calys
-Easy to use software
-Long life expectancy
-Compact and light
-Limited inventory
-Low power
-Low hysteresis
-High reliability (air
Markets:
- Industrial
- Process
Industries:
- Welding
- Speed and brake control
- Sanding
- Cutting
- Humidification
- Tension regulation
- Painting
- Presses
- Polishing
- Adaptative suspension control
- Robotics
- Paper industry
- Machine tools
Email this page to a friend
Product Attributes
| Maximum Ambient Temperature: | +50 °C |
| Maximum Pressure Differential: | 12 bar |
| Minimum Pressure Differential: | 0 bar |
| Power Consumption: | Max. 6 W with 24 V DC and constant changes of the control signal |
| Specifications Met: | EN 61000-6-1: 2001 | EN 61000-6-2: 2001 | EN 61000-6-3: 2001 | EN61000-6-4:2001 |
| Power Supply Voltage: | 24V DC ± 15% (Max. ripple 1V) |
| Minimum Ambient Temperature: | 0 °C |
| Hysteresis: | ≤ 100 mbar if P inlet ≤ 10 bar<br/>≤ 200 mbar if P inlet > 10 bar |
| Protection Mode: | IP65 |
| Mounting Position: | Indifferent (recommended position: upright; electronic part on top) |
| Minimum Regulating Pressure: | 0,05 bar |
| Maximum Flow Rate: | 2700 m3/hour |
| Vibration Resistance: | 30g (in all directions) |
| Materials of Construction: | Silicon free |
| Filter Efficiency Rating: | 50 MICRON |
| Division: | Fluid and Climate Controls Europe |
| Weight: | 4.08 KG |
| UOM: | EACH |
Part Number Tags
P4CG9101C010
