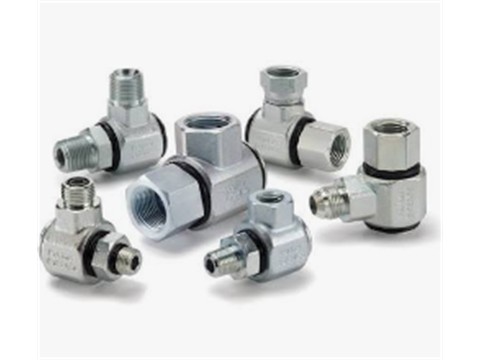

Hydraulic Inline & 90 Degree Elbow, High Pressure Swivels - PS Series

PS Series Swivels (hydraulic) up to 5000 psi, are designed to eliminate hose twist and torque that may cause premature hose failure. These Swivels have a full flow, sealed bearing design with hardened bearing races that are resistant to side load and are suitable for high pressure. PS Series swivels are available in 90° and in-line configurations with a wide variety of port ends, making them ideal for an array of dynamic applications. Consult the catalog pdf under the Product Support tab  for max speed vs pressure recommendations. Technical Characteristics: &bull Sizes: 1/4&rdquo &ndash 2&rdquo &bull Materials: Carbon Steel, 316 Stainless Steel &bull Shaft Port Ends: Male NPTF, Female NPTF, Male JIC 37 degree, Male SAE O-Ring Straight Thread, Male seal-lok, Female SAE Straight Thread &bull Housing Port Ends: Male NPTF (non-standard), Female NPTF, Male JIC 37 degree, Male SAE O-Ring Straight Thread, Male seal-lok, Female JIC 37 degree, Female NPSM Pipe Swivel, Female SAE Straight Thread &bull Seal Options: Nitrile, Aflas, Ethylene Propylene, Fluorocarbon, Neoprene &bull Optional Nickel plating Markets: &bull Industrial &bull Construction &bull Agriculture Features/Benefits: &bull Designed for full flow and minimal pressure drop &bull Sealed bearing is protected from media and external contaminants &bull Bearing race is hardened and designed to minimize wear and extend service life &bull Sizes 1-1/4" to 2"  have needle bearings and ball bearings  to provide additional side load resistance &bull Eliminates hose twist and torque caused by the movement of working equipment Applications:   &bull Aerial lift equipment &bull Hose reels &bull Articulating arm equipment &bull Refuse trucks
