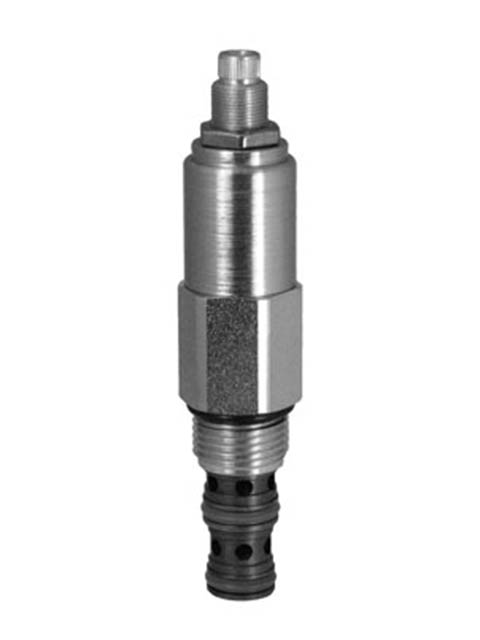

SV105 Sequence Valve
Direct Acting - Normally Closed - External Pilot Sequence Valve for Size 10, 3-way Cavity
| Part #: SV105S20 | Manufacturer: Parker - Hydraulic Cartridge Systems Division |
|
Price/UOM: $137.86
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
SV105 Series Sequence Valve - Direct Acting - Normally Closed - External Pilot
Email this page to a friend
Product Attributes
| Rated Flow: | 38 LPM (10 GPM) |
| Leakage: | 82 cc/min. (5 cu. in./min.) @ 210 Bar (3000 PSI) |
| Max Pressure: | 250 Bar (3600 PSI) |
| Pressure Range: | 28 - 138 Bar (400 - 2000 PSI) |
| UOM: | EACH |
| Seals: | āDā-Ring |
| Operating Temperature: | -45C to +93.3C (-50F to +200F) |
| Adjustment Type: | Screw |
| Common Cavity: | Size 10, 3-way |
| Valve Body: | B10-3 |
| Valve Type Detail: | Direct Acting - Normally Closed - External Pilot |
| Series: | SV105 |
| Valve Type: | Sequence Valve |
| Port: | None - Cartridge Only |
| Common Cavity Type: | Size 10, 3-way |
| Parker Group: | Hydraulic |
| Parker Division: | Hydraulic Cartridge Systems |
Part Number Tags
SV105S20
