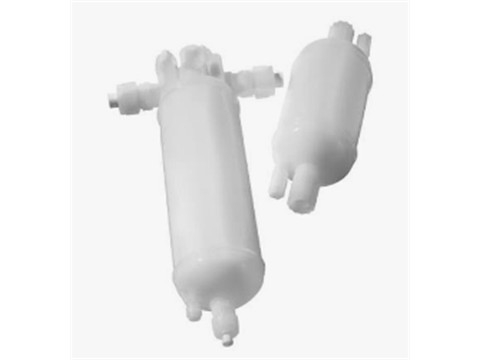

Fluorocap Filter Capsule | All-fluoropolymer capsule for aggressive wet etch and clean applications
The Fluorocap® encapsulated filter cartridge is our standard product for aggressive wet etch and clean applications. The Fluorocap® encapsulated filter cartridge provides good flow rates and on-stream life at an economical price.
| Part #: TW-H11JC-002 | Manufacturer: Parker - Bioscience and Water Filtration Division |
| Price/UOM: Call To Place Order |
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
The Fluorocap® encapsulated filter cartridge is our standard product for aggressive wet etch and clean applications. It provides good flow rates and on-stream life at an economical price. The all-fluoropolymer construction provides excellent chemical resistance for the most aggressive applications up to 180°C. Its integral filter design maximizes up-time with safe and simple change-outs. Available wet-packed for quick installation or Ultraclean wet-packed which offers the lowest metals extractables in the industry.
Features/Benefits
• Economical
• Wide range of configurations and ratings
• Wet-pack option for quick installation
• Ultraclean option for absolute cleanliness
• All-fluoropolymer for maximum chemical resistance
• 100% integrity tested for consistent quality
Applications
• Wet etch and clean filtration for:
– Hot phosphoric acid
– Sulfuric acid
– Hydrofluoric acid
– Nitric acid
– Piranha
– SC1, SC2
– NMP-based solvents
• Filtration for other high temperature or ozonated processes
Email this page to a friend
Product Attributes
| Length (inch): | 10 inch cartridge in a 17.5 inch capsule |
| Flow Rate: | 4.1 GPM/PSID for 10 inch at 0.2 micron |
| Style: | T-Style |
| Connection: | 3/4 inch Flarelock |
| Options: | Ozonated UPW Flushed and Wet Packed |
| Maximum Working Temperature (C): | Up to 180 |
| Micron Rating (µm): | 0.2 |
| Vent Type: | Centered |
| Brand 10: | Parker |
| Division 190: | Bioscience and Water Filtration Division |
| Filter Construction 250: | Pleated Membrane |
| Function 300: | Clarification - Prefiltration - Polishing |
| Industry 350: | Microelectronics |
| Media 40: | PTFE |
| Style 15: | T-Style |
| Materials of Construction 30: | PFA |
| Hose Reinforcement Material & Structure 330: | PFA |
| Vent Type 680: | Centered |
| Micron Rating 460: | 0.2 |
| Filter Area 240: | 9.8 |
| Length (inch) 410: | 10 inch Cartridge in a 17.5 inch Capsule |
| Flow Rate 280: | 4.1 GPM - PSID for 10 inch at 0.2 micron |
| Connection 90: | 3 - 4 inch Flarelock |
| Maximum Working Temperature (C) 450: | Up to 180 |
| Options 510: | Ozonated UPW Flushed and Wet Packed |
