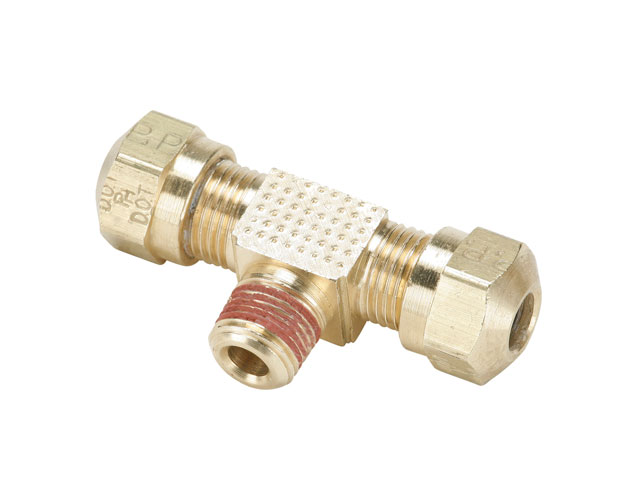

Air Brake-NTA VS272NTA
Male Branch Tee - Compression Transportation Fitting
| Part #: VS272NTA-4-4 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $30.23
|
Availability: 230 |
| UOM: EACH |
Parker's Air Brake-NTA Series Male Branch Tee utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and
D.O.T. specifications. Designed for all D.G311O.T truck and trailer applications.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 1/4 Inch |
| Material: | Brass |
| UOM: | EACH |
| Thread 1: | 1/4 NPT |
| Configuration Type: | Tube to Male |
| Trade Name: | Air Brake-NTA |
| Series: | Air Brake-NTA |
| Pressure Range: | Up to 150 PSI |
| Configuration Sub-Type: | Male Branch Tee |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 1 Type: | NPT |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -40°F to +200°F |
| SAE Reference: | SAE 100425 BA |
| Application: | Transportation: Heavy Duty Truck, Trailer, Mobile |
| Specific Application: | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary & Secondary, Air Lines, Cab Controls |
| SAE Compliance: | Functional Requirements SAE J246 & SAE J1131 and D.O.T. FMVSS571.106 Performance |
