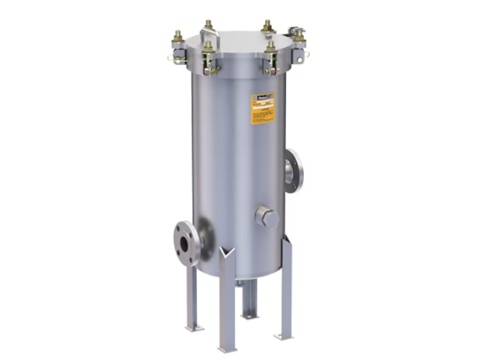

FULFLO WH MULTI-CARTRIDGE FILTER VESSELS | 304 316 STAINLESS STEEL, NON ASME CODE DESIGN FOR LIQUID FILTRATION

The WH cartridge filter vessels are a lightweight, economical, Non-ASME industrial / commercial design suitable for a wide variety of liquid filtration applications. The 100percent stainless steel and passivated finish provides superior corrosion resistance and an excellent appearance. The swing type closure bolts and hinged cover design (up to 35 round) make cartridge change-out quick and easy. Features/Benefits Hinged cover (up to 35 round) and swing bolt closure for fast, easy cartridge change-out Maximum design pressure is 150psi (10.3bar) at 250°F (121°C) for use in a wide range of operating conditions 100percent stainless steel for corrosion resistance. Bolting is zinc plated carbon steel Dual purpose filter cartridge seats for use with double-open-end amp 2-222 O-ring single-open-end filter cartridges Standard finish is passivated 316 stainless steel cartridge seats, top seat plate assemblies, amp tri-fold element guides for long term use Standard Buna-N O-ring with optional fluoroelastomer and EPR for wide range of applications Standard features include vent, clean drain amp dirty drain connections Available in 304 amp 316 stainless steel Applications Potable Water Filtration Process Water Filtration Edible Oils Filtration Beverages Filtration Chemicals Filtration Solvents Filtration Pre-Reverse Osmosis Filtration
