Showing 1 - 12 of 12
| Part # | Availability | Price | |
|---|---|---|---|
| 201-4 | 4,383 | $9.38 | |
| 201-5 | 231 | $9.61 | |
| 201-6 | 2,882 | $10.66 | |
| 201-8 | 3,230 | $11.26 | |
| 201-10 | 3,176 | $14.89 | |
| 201-12 | 962 | $18.42 | |
| 201-16 | 1,849 | $21.12 | |
| 201-20 | 2,115 | $27.06 | |
| 201-24 | 1,362 | $37.06 | |
| 201-32 | 441 | $51.23 | |
| 201-40 | Backorder | $85.72 | |
| 201-48 | Backorder | Call To Place Order |
| Inner Diameter | Material | Working Pressure | UOM | Mating Fitting Series |
|---|---|---|---|---|
| 0.188 Inch | Rubber | 3000 PSI (210 bar) | FOOT | 26, 20, 22 |
| 0.25 Inch | Rubber | 3000 PSI (210 bar) | FOOT | 26, 20, 22 |
| 0.313 Inch | Rubber | 2250 PSI (160 bar) | FOOT | 26, 20, 22 |
| 0.406 Inch | Rubber | 2000 PSI (140 bar) | FOOT | 26, 20, 22 |
| 0.5 Inch | Rubber | 1750 PSI (120 bar) | FOOT | 26, 20, 22 |
| 0.625 Inch | Rubber | 1500 PSI (100 bar) | FOOT | 26, 20, 22 |
| 0.875 Inch | Rubber | 800 PSI (60 bar) | FOOT | 26, 20, 22 |
| 1.125 Inch | Rubber | 625 PSI (40 bar) | FOOT | 26, 20, 22 |
| 1.375 Inch | Rubber | 500 PSI (30 bar) | FOOT | 26, 20, 22 |
| 1.813 Inch | Rubber | 350 PSI (20 bar) | FOOT | 26, 20, 22 |
| 2.375 Inch | Rubber | 350 PSI (20 bar) | FOOT | 26, 20, 22 |
| 3 Inch | Rubber | 200 PSI (14 bar) | FOOT | 20, 22, 22 |
Showing 1 - 12 of 12

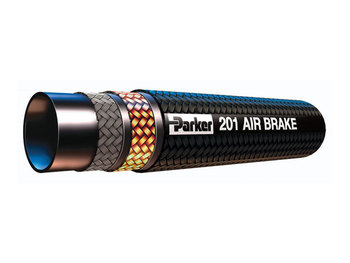

General purpose air-brake hose for use with petroleum base hydraulic fluids and lubricating oils, diesel fuels and antifreeze solutions. Inner Tube: Synthetic rubber. Reinforcement: One fiber braid and one steel braid. Cover: Fiber braid.
