Showing 1 - 9 of 9
| Part # | Availability | Price | |
|---|---|---|---|
| 266-4 | 70 | $11.40 | |
| 266-5 | 140 | $12.85 | |
| 266-6 | 140 | $12.85 | |
| 266-8 | 1,878 | $14.40 | |
| 266-10 | 2,059 | $16.90 | |
| 266-12 | 283 | $22.81 | |
| 266-16 | 1,017 | $25.43 | |
| 266-20 | 568 | $30.95 | |
| 266-24 | 601 | $33.99 |
| Inner Diameter | Material | Working Pressure | UOM | Mating Fitting Series |
|---|---|---|---|---|
| 0.188 Inch | Rubber | 2000 PSI (140 bar) | FOOT | 26, 20, 22 |
| 0.25 Inch | Rubber | 1500 PSI (100 bar) | FOOT | 26, 20, 22 |
| 0.313 Inch | Rubber | 1500 PSI (100 bar) | FOOT | 26, 20, 22 |
| 0.406 Inch | Rubber | 1250 PSI (90 bar) | FOOT | 26, 20, 22 |
| 0.5 Inch | Rubber | 1250 PSI (90 bar) | FOOT | 26, 20, 22 |
| 0.625 Inch | Rubber | 750 PSI (50 bar) | FOOT | 26, 20, 22 |
| 0.875 Inch | Rubber | 400 PSI (30 bar) | FOOT | 26, 20, 22 |
| 1.125 Inch | Rubber | 300 PSI (20 bar) | FOOT | 26, 20, 22 |
| 1.375 Inch | Rubber | 250 PSI (17 bar) | FOOT | 26, 20, 22 |
Showing 1 - 9 of 9

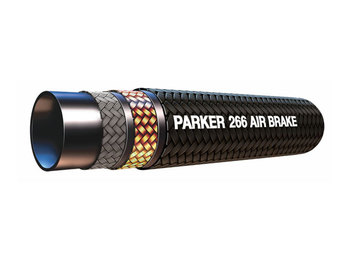

General purpose air-brake hose for use with petroleum base hydraulic fluids and lubricating oils, diesel fuels and antifreeze solutions. Inner Tube: PKR rubber. Reinforcement: One fiber braid and one steel braid. Cover: Fiber braid.
