Showing 1 - 5 of 5
| Part # | Availability | Price | |
|---|---|---|---|
| 774-12 | 584 | $41.79 | |
| 774-16 | 147 | $50.40 | |
| 774-20 | 144 | $97.02 | |
| 774-24 | 8 | $113.32 | |
| 774-32 | 6 | $159.14 |
| Inner Diameter | Material | Working Pressure | UOM |
|---|---|---|---|
| 0.75 Inch | Rubber | 4000 PSI (280 bar) | FOOT |
| 1 Inch | Rubber | 4000 PSI (280 bar) | FOOT |
| 1.25 Inch | Rubber | 3000 PSI (210 bar) | FOOT |
| 1.5 Inch | Rubber | 2500 PSI (170 bar) | FOOT |
| 2 Inch | Rubber | 2500 PSI (170 bar) | FOOT |
Showing 1 - 5 of 5

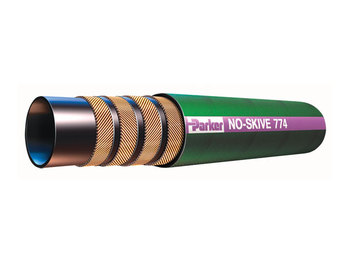

High pressure hydraulic hose for use with Phosphate ester base hydraulic fluids. Inner Tube: EPDM rubber. Reinforcement: Four braids steel wire. Cover: EPDM rubber, green.
