Showing 1 - 9 of 9
| Inner Diameter | Material | Working Pressure | UOM | Mating Fitting Series |
|---|---|---|---|---|
| 0.25 Inch | Rubber | 5000 PSI (340 bar) | FOOT | HY |
| 0.375 Inch | Rubber | 4000 PSI (280 bar) | FOOT | HY |
| 0.5 Inch | Rubber | 3500 PSI (240 bar) | FOOT | HY |
| 0.625 Inch | Rubber | 2750 PSI (190 bar) | FOOT | HY |
| 0.75 Inch | Rubber | 2250 PSI (160 bar) | FOOT | HY |
| 1 Inch | Rubber | 2000 PSI (140 bar) | FOOT | HY |
| 1.25 Inch | Rubber | 1625 PSI (110 bar) | FOOT | HY |
| 1.5 Inch | Rubber | 1250 PSI (90 bar) | FOOT | HY |
| 2 Inch | Rubber | 1125 PSI (80 bar) | FOOT | HY |
Showing 1 - 9 of 9

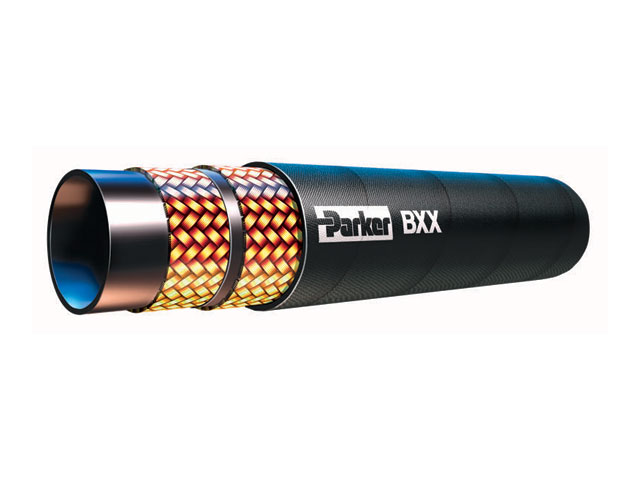

Medium pressure hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Synthetic rubber. Reinforcement: Two braids steel wire. Cover: Synthetic rubber, MSHA accepted.
