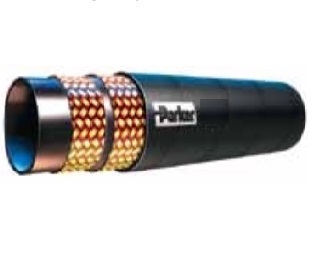

FX Series

Medium Pressure Rubber Hydraulic Hose

Email this page to a friend

Showing 1 - 7 of 7

Part #	Availability	Price
FX04	Backorder	$384,000.00
FX06	Backorder	Call To Place Order
FX08	Backorder	$384,000.00
FX10	Backorder	Call To Place Order
FX12	Backorder	Call To Place Order
FX16	Backorder	Call To Place Order
FX20	Backorder	Call To Place Order

Inner Diameter	Material	Working Pressure	UOM	Mating Fitting Series
0.25 Inch	Rubber	5000 PSI (340 bar)	FOOT	HY
0.375 Inch	Rubber	4000 PSI (280 bar)	FOOT	HY
0.5 Inch	Rubber	3500 PSI (240 bar)	FOOT	HY
0.625 Inch	Rubber	2750 PSI (190 bar)	FOOT	HY
0.75 Inch	Rubber	2250 PSI (160 bar)	FOOT	HY
1 Inch	Rubber	2000 PSI (140 bar)	FOOT	HY
1.25 Inch	Rubber	1625 PSI (110 bar)	FOOT	HY

Showing 1 - 7 of 7

Medium pressure hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Neoprene rubber. Reinforcement: Two braids steel wire. Cover: Synthetic rubber, MSHA accepted.
