77 Series 11C77

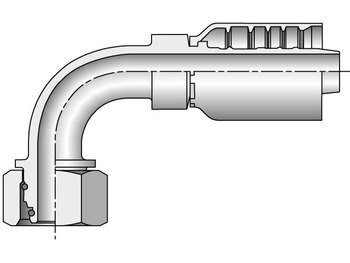

Parkrimp Permanent Female Metric S - Swivel - 90° Elbow (Ball Nose)
Email this page to a friend
Showing 1 - 7 of 7
| Part # | Availability | Price | |
|---|---|---|---|
| 11C77-16-8 | 32 | $130.01 | |
| 11C77-20-10 | 50 | $143.93 | |
| 11C77-20-12 | 30 | $158.32 | |
| 11C77-25-12 | 72 | $178.25 | |
| 11C77-30-16 | 57 | $194.77 | |
| 11C77-38-20 | 27 | $210.04 | |
| 11C77-38-24 | 22 | $289.20 |
| Hose I.D. | Material | Metric Thread | UOM |
|---|---|---|---|
| 1/2 Inch | Steel | M24x1,5 | EACH |
| 5/8 Inch | Steel | M30x2 | EACH |
| 3/4 Inch | Steel | M30x2 | EACH |
| 3/4 Inch | Steel | M36x2 | EACH |
| 1 Inch | Steel | M42x2 | EACH |
| 1 1/4 Inch | Steel | M52x2 | EACH |
| 1 1/2 Inch | Steel | M52x2 | EACH |
Showing 1 - 7 of 7
77 Series Parker Fitting is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short.
