77 Series 1C977

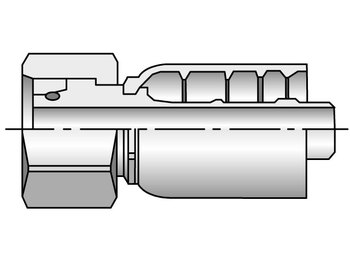

Parkrimp Permanent Female Metric S - Swivel - Straight (24° Cone with O-Ring)

Email this page to a friend

Showing 1 - 12 of 12

Part #	Availability	Price
1C977-16-10	26	$54.41
1C977-16-12	Backorder	Call To Place Order
1C977-16-8	291	$44.71
1C977-20-10	109	$89.88
1C977-20-12	166	$79.07
1C977-20-8	Backorder	$384,000.00
1C977-25-12	409	$93.02
1C977-25-16	63	$130.24
1C977-30-16	162	$154.01
1C977-30-20	38	$201.62
1C977-38-20	92	$180.77
1C977-38-24	75	$204.96

Hose I.D.	Material	Metric Thread	UOM
5/8 Inch	Steel	16mm	EACH
3/4 Inch	Steel	16mm	EACH
1/2 Inch	Steel	16mm	EACH
5/8 Inch	Steel	20mm	EACH
3/4 Inch	Steel	20mm	EACH
1/2 Inch	Steel	20mm	EACH
3/4 Inch	Steel	25mm	EACH
1 Inch	Steel	25mm	EACH
1 Inch	Steel	30mm	EACH
1 1/4 Inch	Steel	30mm	EACH
1 1/4 Inch	Steel	38mm	EACH
1 1/2 Inch	Steel	38mm	EACH

Showing 1 - 12 of 12

77 Series Parker Fitting is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short.
