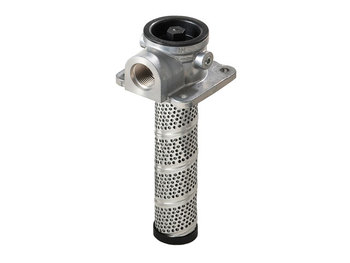

PT2 Series Low Pressure Filter
PT2 Series Hydraulic and Lube Oil Low Pressure Filter
Email this page to a friend
| UOM | Seals | Element Length | Nominal Filter Rating | Port | Nominal Flow Rating | Indicator Type | Bypass | Options | Max Pressure - Non-Fatigue MAOP | Operating Temperature | Replacement Element |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EACH | Nitrile | Single | 2 micron | 3/4 NPT | 10 GPM (38 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936750 |
| EACH | Nitrile | Single | 5 micron | 12 SAE | 10 GPM (38 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936751 |
| EACH | Nitrile | Single | 10 micron | 12 SAE | 10 GPM (38 LPM) | Plugged Indicator | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936752 |
| EACH | Nitrile | Single | 10 micron | 16 SAE | 10 GPM (38 LPM) | Plugged Indicator | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936752 |
| EACH | Nitrile | Single | 10 micron | 12 SAE | 10 GPM (38 LPM) | Plugged Indicator | 25 PSI (1.7 bar) | Steel weld ring | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936752 |
| EACH | Nitrile | Single | 10 micron | 12 SAE | 10 GPM (38 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936752 |
| EACH | Nitrile | Single | 10 micron | 16 SAE | 10 GPM (38 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936752 |
| EACH | Nitrile | Single | 10 micron | 3/4 NPT | 10 GPM (38 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936752 |
| EACH | Nitrile | Single | 10 micron | 12 SAE | 10 GPM (38 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | Steel weld ring | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936752 |
| EACH | Nitrile | Single | 20 micron | 12 SAE | 10 GPM (38 LPM) | Plugged Indicator | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936753 |
| EACH | Nitrile | Single | 20 micron | 12 SAE | 10 GPM (38 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936753 |
| EACH | Nitrile | Double | 2 micron | 16 SAE | 15 GPM (57 LPM) | Plugged Indicator | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936754 |
| EACH | Nitrile | Double | 2 micron | 12 SAE | 15 GPM (57 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | Steel weld ring | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936754 |
| EACH | Nitrile | Double | 5 micron | 12 SAE | 15 GPM (57 LPM) | Plugged Indicator | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936755 |
| EACH | Nitrile | Double | 5 micron | 16 SAE | 15 GPM (57 LPM) | Plugged Indicator | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936755 |
| EACH | Nitrile | Double | 5 micron | 3/4 NPT | 15 GPM (57 LPM) | Plugged Indicator | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936755 |
| EACH | Nitrile | Double | 5 micron | 12 SAE | 15 GPM (57 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936755 |
| EACH | Nitrile | Double | 5 micron | 16 SAE | 15 GPM (57 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936755 |
| EACH | Nitrile | Double | 5 micron | 3/4 NPT | 15 GPM (57 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | No Option | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936755 |
| EACH | Nitrile | Double | 5 micron | 12 SAE | 15 GPM (57 LPM) | Pressure Gauge - 25 psi | 25 PSI (1.7 bar) | Steel weld ring | 150 psi (10.3 bar) | -40F to 225F (-40C to 107C) | 936755 |
PT2 Series Hydraulic and Lube Oil Low Pressure Filter
