SELECTED FILTERS

Manually Selected clear all

	Department: Hydraulic Products
	Product Type: Parker Filtration
	Product: WPF3 Series High Pressure Filter

Automatically Selected

»	Filter Type: High Pressure Filter
»	Series: WPF3
»	Operating Temperature: -15F to 250F (-26C to 121C)
»	Element Length: Single
»	Bypass: 50 PSI (3.5 bar)
»	Max Pressure - Fatigue MAOP: 6000 PSI (414 bar)
»	Max Pressure - Non-Fatigue MAOP: 7000 PSI (483 bar)
»	Parker Division: Hydraulic Filter
»	Seals: Fluorocarbon

AVAILABLE FILTERS

Port Type

Port

Nominal Filter Micron Rating

Filter Media Type

Options

Nominal Flow Rating

Indicator Type

Filter Media Code

Click Image to Zoom

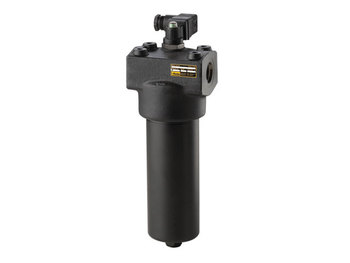

WPF3 Series High Pressure Filter

WPF3 Series Hydraulic and Lube Oil High Pressure Filter

Email this page to a friend

Showing 1 - 20 of 21

Part #	Availability	Price
WPF302QEVM2KS161	Backorder	$915.97
WPF302QEVE2KS161	Backorder	Call To Place Order
WPF305QEVPKS161	Backorder	$815.95
WPF305QEVM2KS161	Backorder	$893.78
WPF305QEVE2KS161	Backorder	Call To Place Order
WPF310QEVPKS161	Backorder	$806.40
WPF310QEVM2KS161	7	$884.23
WPF310QEVE2KS161	Backorder	Call To Place Order
WPF302QHVM2KS162	Backorder	$1,176.31
WPF302QHVE2KS162	Backorder	Call To Place Order
WPF310QHVM2KS162	2	$1,133.47
WPF310QHVE2KS162	Backorder	Call To Place Order
WPF302QEVM2KY161	Backorder	Call To Place Order
WPF305QEVM2KY161	Backorder	$893.78
WPF305QEVE2KY161	Backorder	Call To Place Order
WPF310QEVPKY161	Backorder	$806.40
WPF310QEVM2KY161	Backorder	$884.23
WPF310QEVE2KY161	Backorder	Call To Place Order
WPF302QHVM2KY162	Backorder	Call To Place Order
WPF302QHVE2KY162	Backorder	Call To Place Order

Replacement Element	UOM	Seals	Operating Temperature	Element Length	Nominal Filter Rating	Port	Options	Indicator Type	Nominal Flow Rating	Bypass	Max Pressure - Fatigue MAOP	Max Pressure - Non-Fatigue MAOP
941035Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	2 micron	16 SAE	No Option	Visual - Automatic Reset	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941035Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	2 micron	16 SAE	No Option	Electrical/Visual (DIN-43650 Connection)	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941036Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	5 micron	16 SAE	No Option	Plugged Indicator	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941036Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	5 micron	16 SAE	No Option	Visual - Automatic Reset	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941036Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	5 micron	16 SAE	No Option	Electrical/Visual (DIN-43650 Connection)	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941037Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	10 micron	16 SAE	No Option	Plugged Indicator	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941037Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	10 micron	16 SAE	No Option	Visual - Automatic Reset	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941037Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	10 micron	16 SAE	No Option	Electrical/Visual (DIN-43650 Connection)	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941048Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	2 micron (2000 PSID High Collapse)	16 SAE	No Bypass	Visual - Automatic Reset	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941048Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	2 micron (2000 PSID High Collapse)	16 SAE	No Bypass	Electrical/Visual (DIN-43650 Connection)	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941049Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	10 micron (2000 PSID High Collapse)	16 SAE	No Bypass	Visual - Automatic Reset	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941049Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	10 micron (2000 PSID High Collapse)	16 SAE	No Bypass	Electrical/Visual (DIN-43650 Connection)	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941035Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	2 micron	1 Flange face - SAE Code 62	No Option	Visual - Automatic Reset	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941036Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	5 micron	1 Flange face - SAE Code 62	No Option	Visual - Automatic Reset	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941036Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	5 micron	1 Flange face - SAE Code 62	No Option	Electrical/Visual (DIN-43650 Connection)	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941037Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	10 micron	1 Flange face - SAE Code 62	No Option	Plugged Indicator	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941037Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	10 micron	1 Flange face - SAE Code 62	No Option	Visual - Automatic Reset	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941037Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	10 micron	1 Flange face - SAE Code 62	No Option	Electrical/Visual (DIN-43650 Connection)	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941048Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	2 micron (2000 PSID High Collapse)	1 Flange face - SAE Code 62	No Bypass	Visual - Automatic Reset	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)
941048Q	EACH	Fluorocarbon	-15F to 250F (-26C to 121C)	Single	2 micron (2000 PSID High Collapse)	1 Flange face - SAE Code 62	No Bypass	Electrical/Visual (DIN-43650 Connection)	45 GPM (171 LPM)	50 PSI (3.5 bar)	6000 psi (414 bar)	7000 psi (483 bar)

Showing 1 - 20 of 21

WPF3 Series Hydraulic and Lube Oil High Pressure Filter

WPF Series
