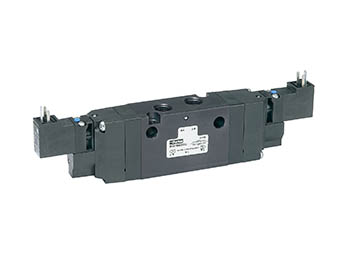

B Series Double Solenoid 4-way 3-position Valve

Email this page to a friend

Showing 1 - 20 of 37

Part #	Availability	Price
B350BB553C	Backorder	$237.54
B360BB553C	Backorder	$237.54
B370BB553C	Backorder	$246.40
B350BB549C	2	$237.54
B360BB549C	Backorder	$237.54
B370BB549C	Backorder	$246.40
B551BB553C	3	$272.51
B561BB553C	Backorder	$272.51
B571BB553C	Backorder	$277.93
B551BB549C	2	$272.51
B561BB549C	Backorder	$272.51
B571BB549C	Backorder	$277.93
B552BB553C	3	$283.62
B562BB553C	Backorder	$283.62
B572BB553C	Backorder	$289.21
B552BB549C	2	$283.62
B562BB549C	3	$283.62
B572BB549C	Backorder	$289.21
B652BB553A	1	$360.04
B662BB553A	Backorder	$360.04

UOM	Port	CV Factor	Operator Type Detail	Solenoid Voltage	Offset Return Type	Center Condition	Pilot Supply	Override Type
EACH	1/8 NPT	0.6	Double	120VAC	Spring Return	All Ports Blocked	Internal	Non-locking
EACH	1/8 NPT	0.6	Double	120VAC	Spring Return	Center Exhaust	Internal	Non-locking
EACH	1/8 NPT	0.6	Double	120VAC	Spring Return	Pressure Center	Internal	Non-locking
EACH	1/8 NPT	0.6	Double	24VDC	Spring Return	All Ports Blocked	Internal	Non-locking
EACH	1/8 NPT	0.6	Double	24VDC	Spring Return	Center Exhaust	Internal	Non-locking
EACH	1/8 NPT	0.6	Double	24VDC	Spring Return	Pressure Center	Internal	Non-locking
EACH	1/4 NPT	1.1	Double	120VAC	Spring Return	All Ports Blocked	Internal	Non-locking
EACH	1/4 NPT	1.1	Double	120VAC	Spring Return	Center Exhaust	Internal	Non-locking
EACH	1/4 NPT	1.1	Double	120VAC	Spring Return	Pressure Center	Internal	Non-locking
EACH	1/4 NPT	1.1	Double	24VDC	Spring Return	All Ports Blocked	Internal	Non-locking
EACH	1/4 NPT	1.1	Double	24VDC	Spring Return	Center Exhaust	Internal	Non-locking
EACH	1/4 NPT	1.1	Double	24VDC	Spring Return	Pressure Center	Internal	Non-locking
EACH	3/8 NPT	1.1	Double	120VAC	Spring Return	All Ports Blocked	Internal	Non-locking
EACH	3/8 NPT	1.1	Double	120VAC	Spring Return	Center Exhaust	Internal	Non-locking
EACH	3/8 NPT	1.1	Double	120VAC	Spring Return	Pressure Center	Internal	Non-locking
EACH	3/8 NPT	1.1	Double	24VDC	Spring Return	All Ports Blocked	Internal	Non-locking
EACH	3/8 NPT	1.1	Double	24VDC	Spring Return	Center Exhaust	Internal	Non-locking
EACH	3/8 NPT	1.1	Double	24VDC	Spring Return	Pressure Center	Internal	Non-locking
EACH	3/8 NPT	2.1	Double	120VAC	Spring Return	All Ports Blocked	Internal	Non-locking
EACH	3/8 NPT	2.1	Double	120VAC	Spring Return	Center Exhaust	Internal	Non-locking

Showing 1 - 20 of 37

B Series Double Solenoid 4-way 3-position Valve
