	Department: Parker Divisions
	Division Name: Hydraulic Cartridge Systems
	Product: DSH081 Solenoid Valve

	Max Pressure: 350 Bar (5000 PSI)
	Valve Type: Solenoid Valve
	Override Type: None
	Valve Style: Normally Closed - Full Reverse Flow (Fast Response)

Automatically Selected

»	Valve Type Detail: Poppet Type - 2-Way
»	Series: DSH081
»	Port: None - Cartridge Only
»	Common Cavity Type: Size 08, 2-way
»	Leakage: 5 drops/min. (.33 cc/min.) @75% of crack pressure
»	Parker Division: Hydraulic Cartridge Systems
»	Rated Flow: 30 LPM (8 GPM)
»	Screen: None
»	Valve Body: B08-2

AVAILABLE FILTERS

Operating Temperature

Seals

DSH081 Solenoid Valve

Click Image to Zoom

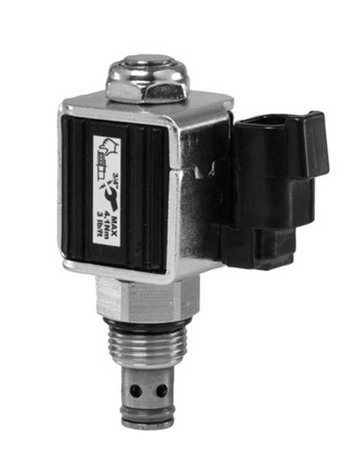

DSH081 Solenoid Valve

Poppet Type - 2-Way Solenoid Valve for Size 08, 2-way Cavity (Coil Not Included)

Email this page to a friend

Showing variations based on selected filters. Show all variations.

Showing 1 - 2 of 2

	Part #	Availability	Price
	DSH081CHR	Backorder	$114.26
	DSH081CHRV	Backorder	$93.06

Rated Flow	Leakage	Max Pressure	UOM	Seals	Screen	Operating Temperature	Override Type	Common Cavity	Valve Body
30 LPM (8 GPM)	5 drops/min. (.33 cc/min.) @75% of crack pressure	350 Bar (5000 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 2-way	B08-2
30 LPM (8 GPM)	5 drops/min. (.33 cc/min.) @75% of crack pressure	350 Bar (5000 PSI)	EACH	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 08, 2-way	B08-2

Showing 1 - 2 of 2

DSH081 Series Solenoid Valve - Poppet Type - 2-Way (Coil Not Included)
