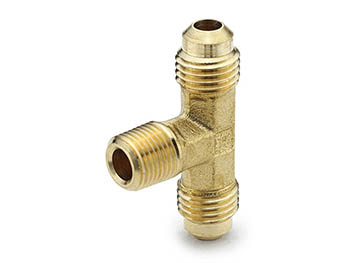

Male Branch Tee 145F
Parker 45° Flare Brass Male Branch Tee - Ref. SAE J512 and J513 010425
Email this page to a friend
Showing 1 - 9 of 9
| Part # | Availability | Price | |
|---|---|---|---|
| 145F-4-2 | 754 | $6.92 | |
| 145F-4-4 | 257 | $13.97 | |
| 145F-5-4 | 35 | $22.09 | |
| 145F-6-4 | 152 | $13.13 | |
| 145F-6-6 | 23 | $21.15 | |
| 145F-6-8 | 16 | $36.88 | |
| 145F-8-6 | 57 | $23.11 | |
| 145F-8-8 | 163 | $34.23 | |
| 145F-10-8 | 2 | $25.90 |
| Outer Diameter 1 | Outer Diameter 2 | Thread 3 | Material | Thread 2 | UOM | Thread 1 |
|---|---|---|---|---|---|---|
| 1/4 Inch | 1/4 Inch | 1/8 NPT | Brass | 7/16-20 UN/UNF | EACH | 7/16-20 UN/UNF |
| 1/4 Inch | 1/4 Inch | 1/4 NPT | Brass | 7/16-20 UN/UNF | EACH | 7/16-20 UN/UNF |
| 5/16 Inch | 5/16 Inch | 1/4 NPT | Brass | 1/2-20 UN/UNF | EACH | 1/2-20 UN/UNF |
| 3/8 Inch | 3/8 Inch | 1/4 NPT | Brass | 5/8-18 UN/UNF | EACH | 5/8-18 UN/UNF |
| 3/8 Inch | 3/8 Inch | 3/8 NPT | Brass | 5/8-18 UN/UNF | EACH | 5/8-18 UN/UNF |
| 3/8 Inch | 3/8 Inch | 1/2 NPT | Brass | 5/8-18 UN/UNF | EACH | 5/8-18 UN/UNF |
| 1/2 Inch | 1/2 Inch | 3/8 NPT | Brass | 3/4-16 UN/UNF | EACH | 3/4-16 UN/UNF |
| 1/2 Inch | 1/2 Inch | 1/2 NPT | Brass | 3/4-16 UN/UNF | EACH | 3/4-16 UN/UNF |
| 5/8 Inch | 5/8 Inch | 1/2 NPT | Brass | 7/8-14 UN/UNF | EACH | 7/8-14 UN/UNF |
Showing 1 - 9 of 9
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
