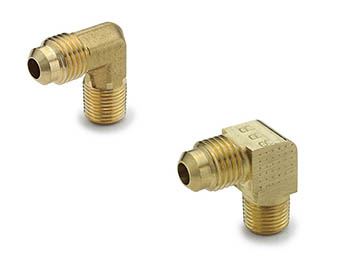

Male Elbow 149F-249F
Parker 45° Flare Brass Male Elbow - Ref. SAE J512 and J513 010202
Email this page to a friend
| Part # | Availability | Price | |
|---|---|---|---|
| 149F-2-2 | 137 | $7.89 | |
| 149F-3-2 | 10,402 | $4.29 | |
| 249F-3-2 | 12 | $4.01 | |
| 149F-4-2 | 13,634 | $3.77 | |
| 249F-4-2 | 24 | $3.52 | |
| 149F-4-4 | 8,089 | $4.70 | |
| 249F-4-4 | 370 | $5.61 | |
| 149F-4-6 | 13,226 | $10.27 | |
| 249F-4-6 | 94 | $8.69 | |
| 149F-4-8 | 15 | $22.02 | |
| 149F-5-2 | 90 | $9.09 | |
| 149F-5-4 | 192 | $8.40 | |
| 249F-5-4 | 18 | $8.57 | |
| 149F-5-6 | 111 | $15.98 | |
| 149F-6-2 | 497 | $7.35 | |
| 249F-6-2 | 45 | $26.48 | |
| 149F-6-4 | 10,532 | $5.31 | |
| 249F-6-4 | 153 | $7.29 | |
| 149F-6-6 | 13,184 | $6.78 | |
| 249F-6-6 | 150 | $12.85 |
| Outer Diameter 1 | Material | Thread 2 | UOM | Thread 1 |
|---|---|---|---|---|
| 1/8 Inch | Brass | 1/8 NPT | EACH | 5/16-24 UN/UNF |
| 3/16 Inch | Brass | 1/8 NPT | EACH | 3/8-24 UN/UNF |
| 3/16 Inch | Brass | 1/8 NPT | EACH | 3/8-24 UN/UNF |
| 1/4 Inch | Brass | 1/8 NPT | EACH | 7/16-20 UN/UNF |
| 1/4 Inch | Brass | 1/8 NPT | EACH | 7/16-20 UN/UNF |
| 1/4 Inch | Brass | 1/4 NPT | EACH | 7/16-20 UN/UNF |
| 1/4 Inch | Brass | 1/4 NPT | EACH | 7/16-20 UN/UNF |
| 1/4 Inch | Brass | 3/8 NPT | EACH | 7/16-20 UN/UNF |
| 1/4 Inch | Brass | 3/8 NPT | EACH | 7/16-20 UN/UNF |
| 1/4 Inch | Brass | 1/2 NPT | EACH | 7/16-20 UN/UNF |
| 5/16 Inch | Brass | 1/8 NPT | EACH | 1/2-20 UN/UNF |
| 5/16 Inch | Brass | 1/4 NPT | EACH | 1/2-20 UN/UNF |
| 5/16 Inch | Brass | 1/4 NPT | EACH | 1/2-20 UN/UNF |
| 5/16 Inch | Brass | 3/8 NPT | EACH | 1/2-20 UN/UNF |
| 3/8 Inch | Brass | 1/8 NPT | EACH | 5/8-18 UN/UNF |
| 3/8 Inch | Brass | 1/8 NPT | EACH | 5/8-18 UN/UNF |
| 3/8 Inch | Brass | 1/4 NPT | EACH | 5/8-18 UN/UNF |
| 3/8 Inch | Brass | 1/4 NPT | EACH | 5/8-18 UN/UNF |
| 3/8 Inch | Brass | 3/8 NPT | EACH | 5/8-18 UN/UNF |
| 3/8 Inch | Brass | 3/8 NPT | EACH | 5/8-18 UN/UNF |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
