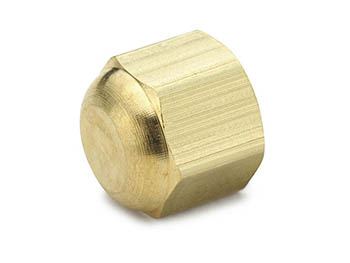

Cap Nut 640F
Parker 45° Flare Brass Cap Nut - Ref. SAE J512 and J513 010112
Email this page to a friend
Showing 1 - 6 of 6
| Part # | Availability | Price | |
|---|---|---|---|
| 640F-3 | 206 | $5.33 | |
| 640F-4 | 4,556 | $1.75 | |
| 640F-5 | 3,420 | $2.96 | |
| 640F-6 | 3,391 | $2.51 | |
| 640F-8 | 2,468 | $4.58 | |
| 640F-10 | 1,532 | $6.76 |
| Outer Diameter 1 | Material | UOM | Thread 1 |
|---|---|---|---|
| 3/16 Inch | Brass | EACH | 3/8-24 UN/UNF |
| 1/4 Inch | Brass | EACH | 7/16-20 UN/UNF |
| 5/16 Inch | Brass | EACH | 1/2-20 UN/UNF |
| 3/8 Inch | Brass | EACH | 5/8-18 UN/UNF |
| 1/2 Inch | Brass | EACH | 3/4-16 UN/UNF |
| 5/8 Inch | Brass | EACH | 7/8-14 UN/UNF |
Showing 1 - 6 of 6
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
