SELECTED FILTERS

Manually Selected clear all

	Department: Parker Divisions
	Division Name: Fluid Systems Connector & Brass
	Product: Male Connector 27

Automatically Selected

»	Material: Brass
»	Inch/Metric: Inch
»	Trade Name: Dubl-Barb
»	Configuration Type: Barb to Male
»	Configuration Sub-Type: Male Connector
»	Series: Dubl-Barb
»	Outer Diameter 1 Inch/mm: Inch
»	Inner Diameter 1 Inch/mm: Inch
»	Thread 1: 10-32 UN/UNF
»	Thread 1 Type: UN/UNF
»	Operating Temperature: -65°F to +75°F
»	Parker Division: Fluid Systems Connector (Brass Products)

AVAILABLE FILTERS

Inner Diameter 1

Click Image to Zoom

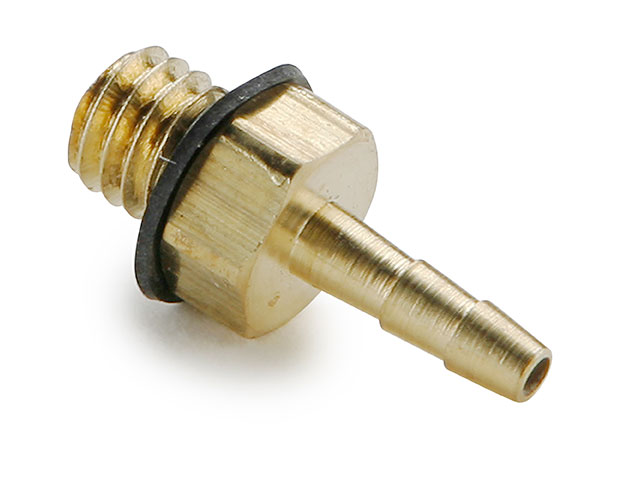

Male Connector 27

Parker Dubl-Barb Brass Male Connector

Email this page to a friend

Showing 1 - 2 of 2

	Part #	Availability	Price
	27-1	307	$6.63
	27-2	485	$7.02

Outer Diameter 1	Material	Inner Diameter 1	UOM	Thread 1
1/8 Inch	Brass	0.062 Inch	EACH	10-32 UN/UNF
1/4 Inch	Brass	0.125 Inch	EACH	10-32 UN/UNF

Showing 1 - 2 of 2

Parker Dubl-Barb barbed fittings are economical push-on fittings for use with polyethylene tubing. We recommend Parker Parflex brand polyethylene tubing for best results.

Dubl-Barb Fittings

General Technical
