SELECTED FILTERS

Manually Selected clear all

	Department: Parker Divisions
	Division Name: Pneumatic
	Product: Viking Lite Series Single Solenoid 4-way 2-position Valve

Automatically Selected

»	Trade Name: Viking Lite
»	Series: Viking Lite
»	Pneumatic Valve Type: Inline Valve
»	Port Inch/BSP: NPT
»	Valve Passages: 4-way
»	Valve Positions: 2-position
»	Offset Return Type: Spring Return
»	Operator Type: Solenoid
»	Operator Type Detail: Single
»	Override Type: Non-locking
»	Pilot Supply: Internal
»	Solenoid Connection: 22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
»	Supply Pressure Range: 43.5 to 145 PSIG (3 to 10 bar)
»	Operating Temperature: 14°F to 122°F (-10°C to 50°C)
»	Parker Division: Pneumatic

AVAILABLE FILTERS

Port

CV Factor

Solenoid Voltage

Viking Lite Series Single Solenoid 4-way 2-position Valve

Click Image to Zoom

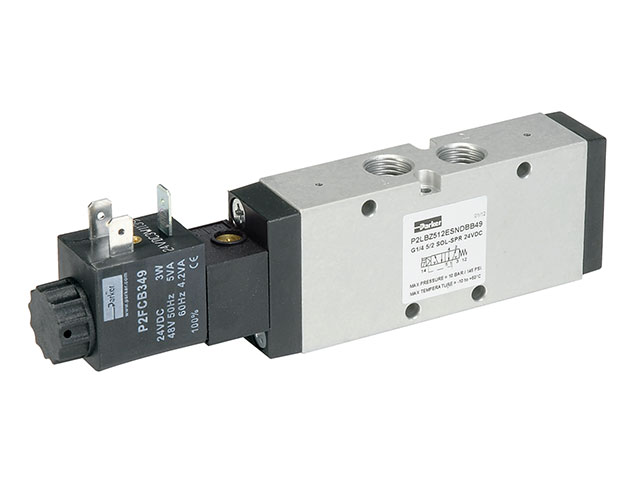

Viking Lite Series Single Solenoid 4-way 2-position Valve

Single Solenoid, 4-way, 2-position, Spring Return

Email this page to a friend

Showing 1 - 6 of 6

	Part #	Availability	Price
	P2LAZ591ESNDBB49	Backorder	$65.01
	P2LAZ591ESNDBB53	Backorder	$65.01
	P2LBZ592ESNDBB49	Backorder	$72.24
	P2LBZ592ESNDBB53	9	$72.24
	P2LCZ593ESNDBB49	9	$93.68
	P2LCZ593ESNDBB53	5	$93.68

UOM	Port	CV Factor	Operator Type Detail	Solenoid Voltage	Offset Return Type	Pilot Supply	Override Type
EACH	1/8 NPT	0.6	Single	24VDC	Spring Return	Internal	Non-locking
EACH	1/8 NPT	0.6	Single	120VAC	Spring Return	Internal	Non-locking
EACH	1/4 NPT	1.5	Single	24VDC	Spring Return	Internal	Non-locking
EACH	1/4 NPT	1.5	Single	120VAC	Spring Return	Internal	Non-locking
EACH	3/8 NPT	2.5	Single	24VDC	Spring Return	Internal	Non-locking
EACH	3/8 NPT	2.5	Single	120VAC	Spring Return	Internal	Non-locking

Showing 1 - 6 of 6

Inline Solenoid operated (IP65, RoHS, CE) pneumatic valve with Parker's exclusive Wear Compensation System (WCS) spool seals. No lubrication required.
