| Part # | Availability | Price | |
|---|---|---|---|
| 1D277-16-8 | 59 | $46.31 | |
| 1D277-20-10 | Backorder | $384,000.00 | |
| 1D277-25-12 | 33 | $95.77 | |
| 1D277-30-16 | 36 | $155.29 | |
| 1D277-38-20 | 23 | $176.08 |
| Material | Hose I.D. | Metric Thread | UOM |
|---|---|---|---|
| Steel | 1/2 Inch | M24x1,5 | EACH |
| Steel | 5/8 Inch | M30x2 | EACH |
| Steel | 3/4 Inch | M36x2 | EACH |
| Steel | 1 Inch | M42x2 | EACH |
| Steel | 1 1/4 Inch | M52x2 | EACH |
Showing 1 - 5 of 5

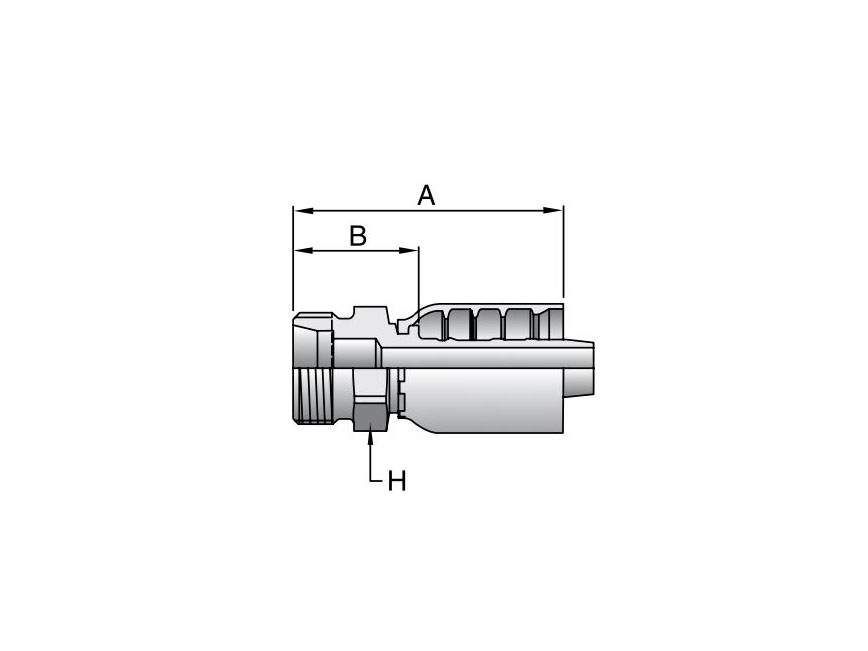

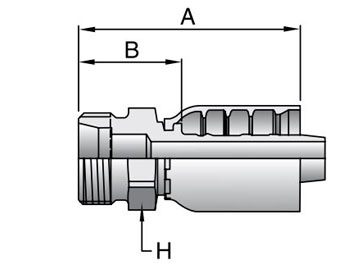

77 Series Parker Fitting is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short.
