Showing 1 - 7 of 7
| Part # | Availability | Price | |
|---|---|---|---|
| VHC4-2M | Backorder | $25.37 | |
| VHC4-4M | 190 | $25.37 | |
| VHC6-6M | Backorder | $37.78 | |
| VHC8-8M | 31 | $42.63 | |
| VHC12-12M | Backorder | $63.28 | |
| VHC16-16M | 4 | $112.60 | |
| VHC32-32M | Backorder | $696.32 |
| Body Size | Material | Valved/Non-Valved | Max Pressure Range | Thread Size |
|---|---|---|---|---|
| 1/4 Inch | Steel | Valved | 6500 PSI | 1/8-27 NPT |
| 1/4 Inch | Steel | Valved | 6500 PSI | 1/4-18 NPT |
| 3/8 Inch | Steel | Valved | 4500 PSI | 3/8-18 NPT |
| 1/2 Inch | Steel | Valved | 4000 PSI | 1/2-14 NPT |
| 3/4 Inch | Steel | Valved | 3500 PSI | 3/4-14 NPT |
| 1 Inch | Steel | Valved | 2000 PSI | 1-11 1/2 NPT |
| 2 Inch | Steel | Valved | 1500 PSI | 2-11-1/2 NPT |
Showing 1 - 7 of 7

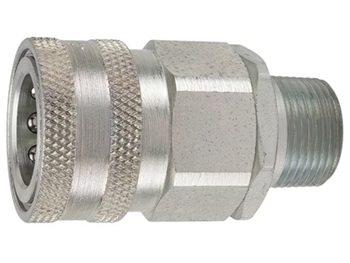

The H Series quick couplings, featuring the original Snap-tite design, have a long-standing reputation for reliable performance in hydraulic systems. Ideal for general-purpose fluid applications, the H Series offers the flexibility of single or double shut-off valving to meet a variety of operational needs. Available in a broad selection of sizes, materials, and end configurations, these couplings provide durable, leak-resistant connections across a wide range of industrial and mobile applications.
