Showing 1 - 18 of 18
| Body Size | Thread Size | Material |
|---|---|---|
| 1/4 Inch | 1/4-18 NPTF | Steel |
| 1/4 Inch | 7/16-20 UNF | Steel |
| 3/8 Inch | 1/4-18 NPTF | Steel |
| 3/8 Inch | 3/8-18 NPTF | Steel |
| 3/8 Inch | 9/16-18 UNF | Steel |
| 3/8 Inch | 1/2-14 NPTF | Steel |
| 1/2 Inch | 1/2-14 NPTF | Steel |
| 1/2 Inch | 3/4-16 UNF | Steel |
| 3/4 Inch | 3/4-14 NPTF | Steel |
| 3/4 Inch | 1-1/16-12 UNF | Steel |
| 1 Inch | 1-11 1/2 NPTF | Steel |
| 1 Inch | 1-5/16-12 UNF | Steel |
| 1 Inch | 1-1/4-11-1/2 NPT | Steel |
| 1 Inch | 1-5/8-12 UNF | Steel |
| 2 Inch | 1-1/2-11 1/2 NPTF | Steel |
| 2 Inch | 1-7/8-12 UNF | Steel |
| 2 Inch | 2-11-1/2 NPT | Steel |
| 2 Inch | 2-1/2-12 UNF | Steel |
Showing 1 - 18 of 18

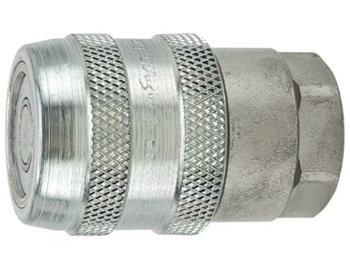

Parker’s 71 Series, formerly known as Snap-tite couplings, are engineered for high-pressure applications with working pressures up to 10,000 psi. Designed with flush-face valves to minimize air inclusion and fluid loss, these couplings offer clean, efficient operation. Available in a range of materials and body sizes, the 71 Series features large flow chambers and a unique valve design that delivers exceptional flow capacity while keeping pressure drop to a minimum—ideal for demanding hydraulic systems that require reliable, high-performance connections.
