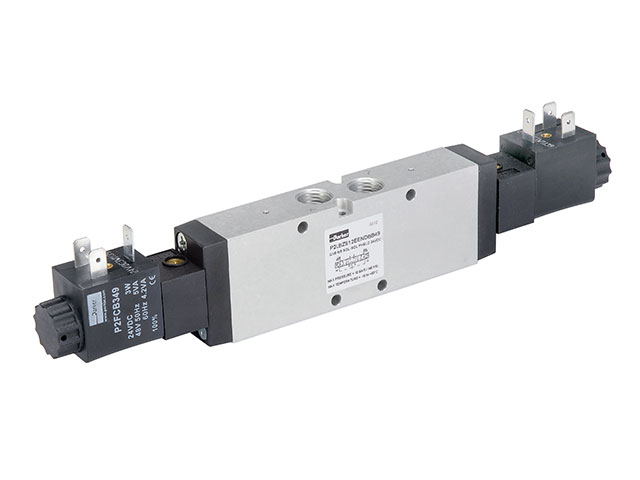

P2LBZ892EENDBB49 Viking Lite Series Double Solenoid 4-way 3-position Valve
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW

Viking Lite Series Double Solenoid 4-way 3-position Valve

Double Solenoid, 4-way, 3-position, Spring Return, Center Exhaust

Part #: P2LBZ892EENDBB49 Manufacturer: Parker
Price/UOM: $81.20In Stock!
Availability: Contact Us For Lead Time
UOM: EA

Description:
Inline Solenoid operated (IP65, RoHS, CE) pneumatic valve with Parker's exclusive Wear Compensation System (WCS) spool seals. No lubrication required.
Email this page to a friend


Product Attributes


Port: 1/4 NPT
CV Factor: 1.5
Operator Type Detail: Double
Solenoid Voltage: 24VDC
Offset Return Type: Spring Return
Center Condition: Center Exhaust
Pilot Supply: Internal
Override Type: Non-locking
UOM: EA
Series: Viking Lite
Trade Name: Viking Lite
Pneumatic Valve Type: Inline Valve
Port Inch/BSP: NPT
Valve Passages: 4-way
Valve Positions: 3-position
Operator Type: Solenoid
Solenoid Connection: 22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
Supply Pressure Range: 43.5 to 145 PSIG (3 to 10 bar)
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Parker Division: Pneumatic
Parker Group: Automation


Part Number Tags: P2LBZ892EENDBB49
